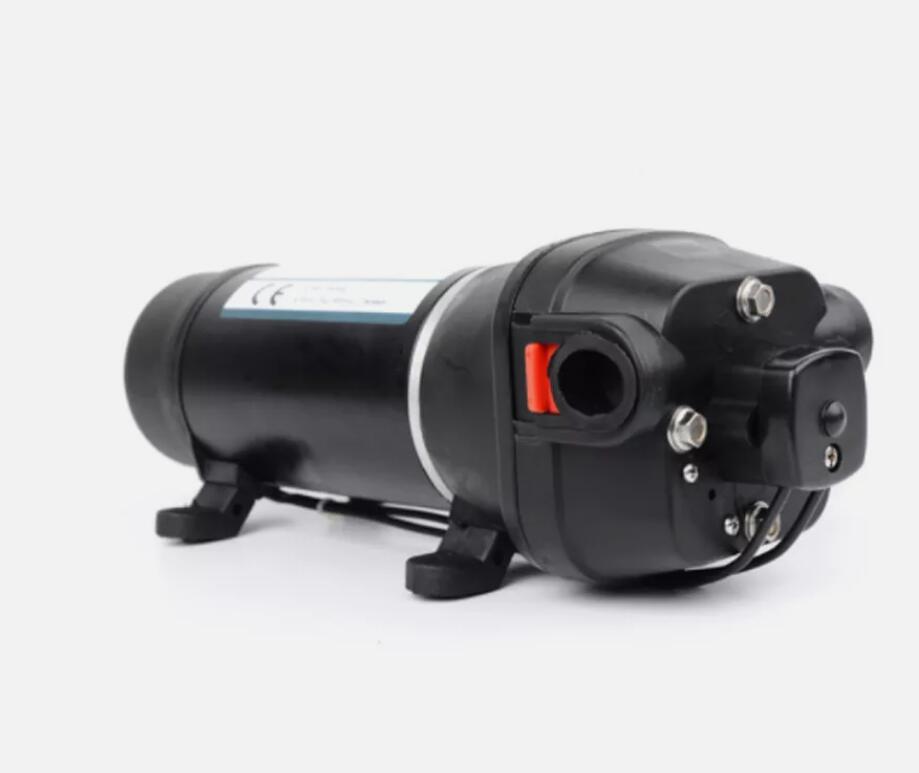

AC 220V/110V Diaphragm Water Pump 40 PSI Pressure 4.5 GPM Max Self-priming
Product Infomation
Details
Features:
• Built-in pressure switch automatically starts and stops pump
instantaneously when discharge valve opens and closes.
• Compact design and plug-in port fittings make installation easy.
• Can run dry without damage and handle liquids up to 130° F (54° C).
• No metal contact with liquid being pumped.
• Ball bearing drive throughout pump and motor assures longer pump life.
• Excellent self-priming capability. Pump may be located above the liquid level.
• Powerful, permanent magnet motor with low current draw and long life brushes.
• Motor Design: Permanent Magnet, Ball Bearing.
• Pump Design: Diaphragm
• Pump: Four chamber diaphragm design;
Self-priming up to 10 ft. suction lift;
Pump able to run dry without damage;
Removable port to hose connectors.
• Self-primes up to 2.4m vertical lift
• Four-piston design delivers higher flow rates
• Runs dry without harm to the pump
• Provides quiet operation and smooth flow
• Includes plug-in ports for easy installation:
One 1/2" (13mm) - 14 pipe Straight Quad port
One 1/2" (13mm) hose barb Straight Quad port
One 1/2" (13mm) hose barb 90° Elbow Quad port
One 1/2" (13mm) Barb Quad Port 90° Strainer
• Install a water strainer to protect pump from debris
• Built-in pressure switch automatically starts and stops pump
instantaneously when discharge valve opens and closes.
• Compact design and plug-in port fittings make installation easy.
• Can run dry without damage and handle liquids up to 130° F (54° C).
• No metal contact with liquid being pumped.
• Ball bearing drive throughout pump and motor assures longer pump life.
• Excellent self-priming capability. Pump may be located above the liquid level.
• Powerful, permanent magnet motor with low current draw and long life brushes.
• Motor Design: Permanent Magnet, Ball Bearing.
• Pump Design: Diaphragm
• Pump: Four chamber diaphragm design;
Self-priming up to 10 ft. suction lift;
Pump able to run dry without damage;
Removable port to hose connectors.
• Self-primes up to 2.4m vertical lift
• Four-piston design delivers higher flow rates
• Runs dry without harm to the pump
• Provides quiet operation and smooth flow
• Includes plug-in ports for easy installation:
One 1/2" (13mm) - 14 pipe Straight Quad port
One 1/2" (13mm) hose barb Straight Quad port
One 1/2" (13mm) hose barb 90° Elbow Quad port
One 1/2" (13mm) Barb Quad Port 90° Strainer
• Install a water strainer to protect pump from debris
